Platypus Quickdraw 2L Water Filter System

Take your adventure to the next level with the Platypus QuickDraw 2L Filter System. Building on the success of its 1L predecessor, this compact and fast system now offers a larger dirty reservoir and more customization options. The durable 2L reservoir can withstand a months-long thru-hike, and its wide-mouth opening and easy fill handle keep you moving efficiently. Plus, with inner and outer threads for compatibility with other vessels like smartwater® and Platy bottles, as well as a DrinkCap and ConnectCap™ for drinking and pouring, this system has everything you need. You can even quickly transfer water directly into your hydration reservoir with the included short hose and quick connector. And with two easy cleaning methods and an Integrity Check process, you can be sure your water is always safe to drink. The QuickDraw 2L Filter System is the ultimate squeeze filter for passionate adventurers seeking to push further and deeper in the backcountry.

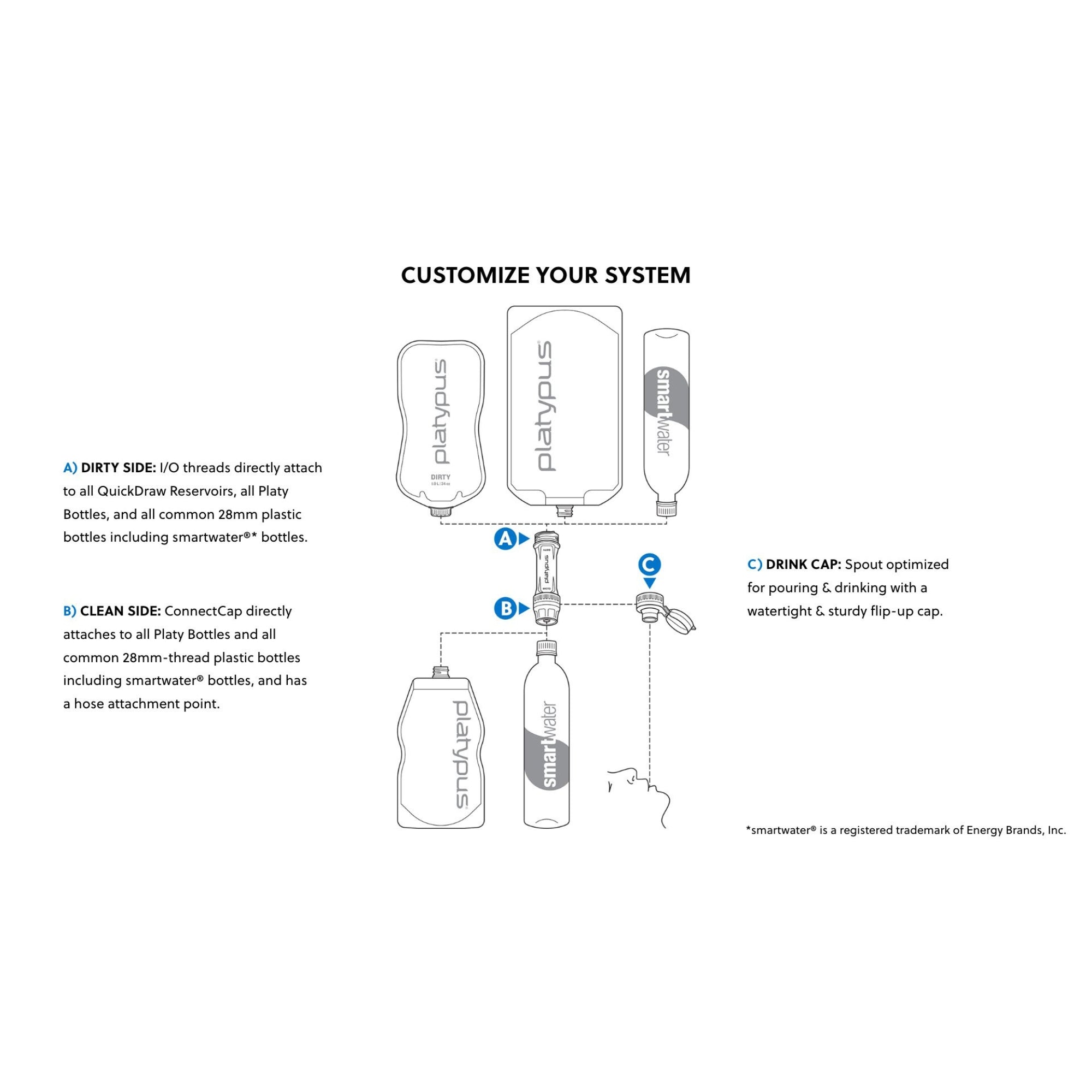

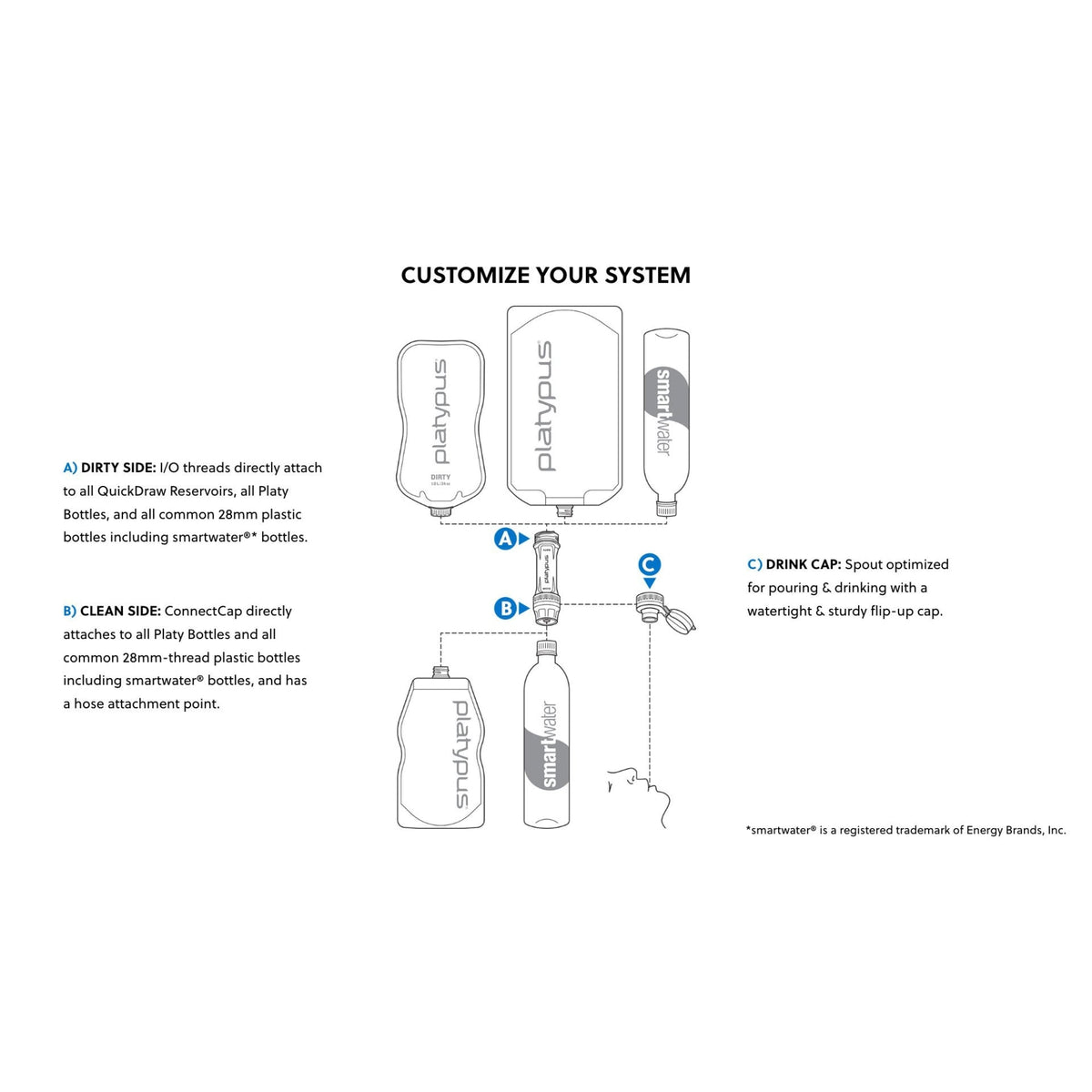

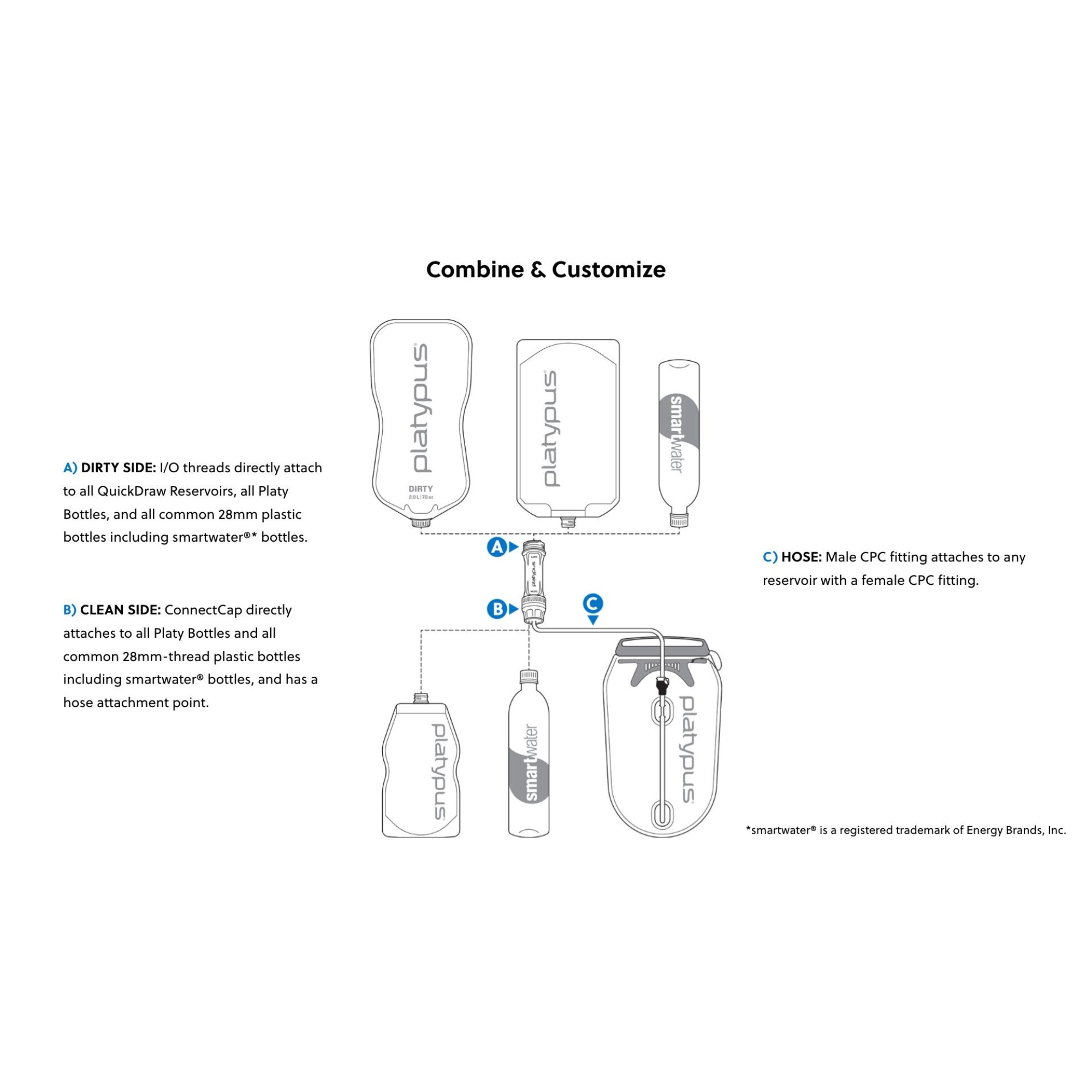

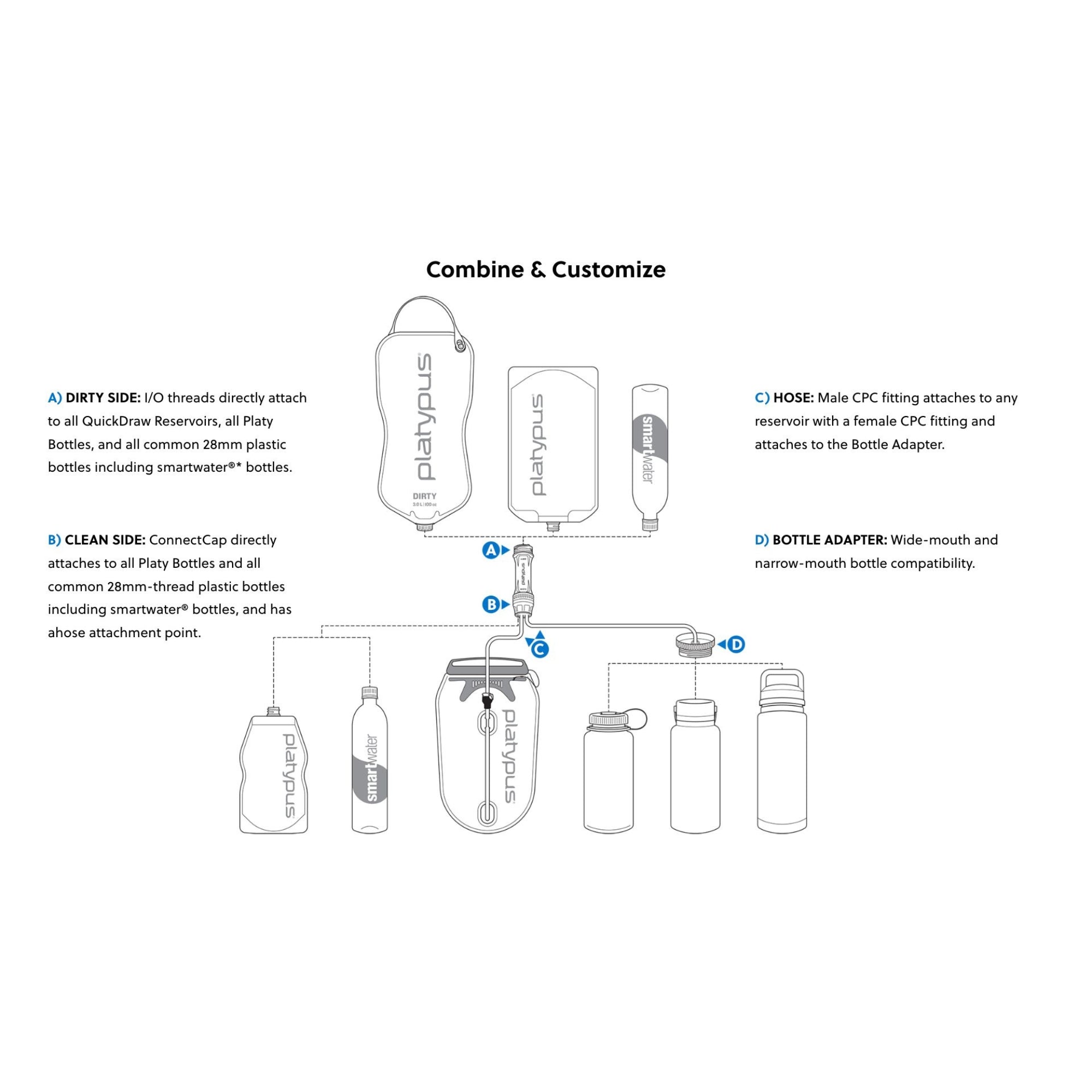

Dirty Side: The dirty side of the QuickDraw features inside/outside (I/O) threads. The outside set of threads is only compatible with QuickDraw reservoirs.™ The inside set of threads is compatible with all common 28mm-thread plastic water bottles (like smartwater®), and narrow-mouth Platy bottles including the SoftBottle™, the Platy® 2L, PlatyPreserve™ and the Platy® Water Tank.

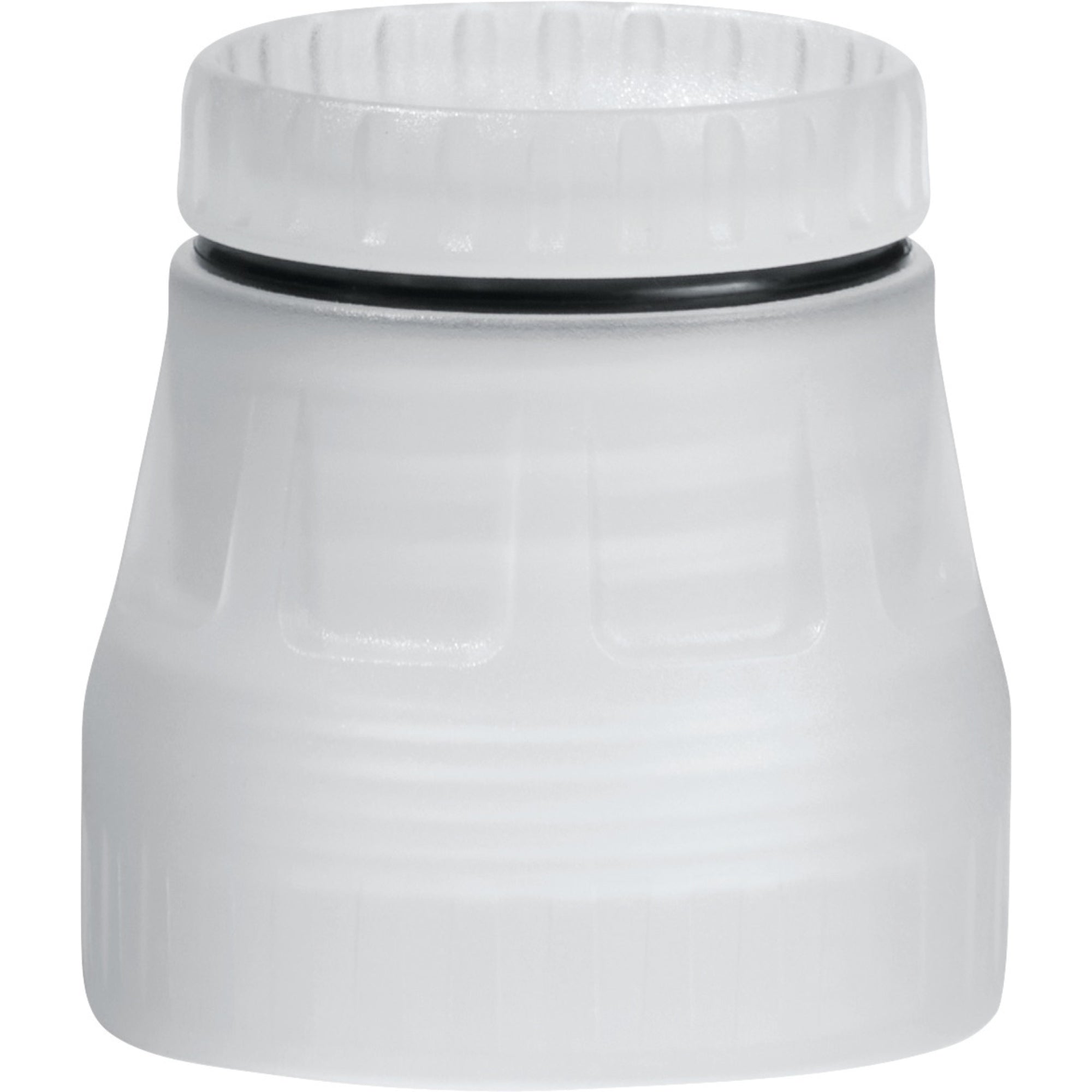

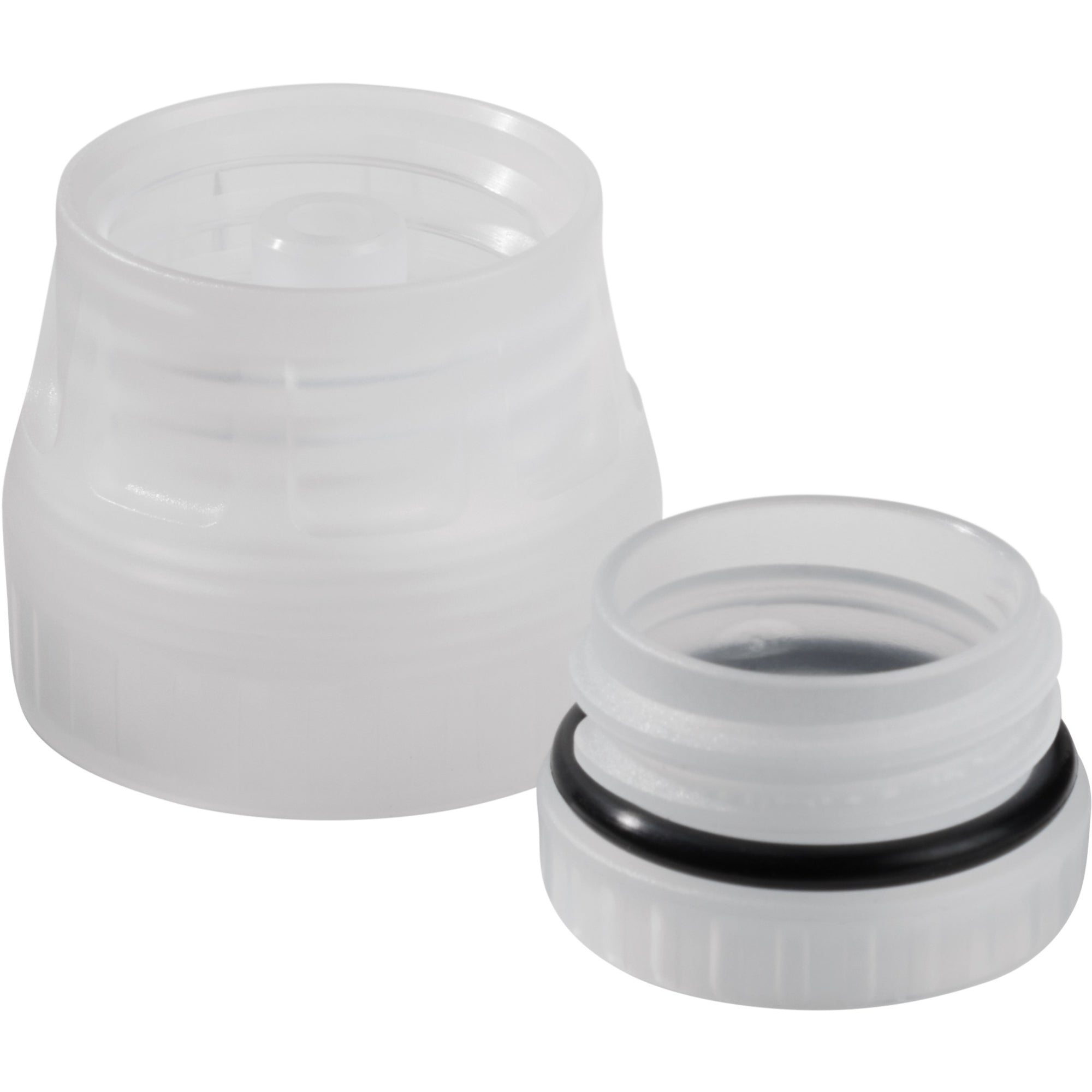

Clean Side: The QuickDraw’s ConnectCap threads directly to all common 28mm-thread plastic water bottles (like smartwater®), and narrow-mouth Platy bottles including the SoftBottle™, the Platy® 2L, PlatyPreserve™, the Platy® Water Tank, and the Hoser™ Reservoir.

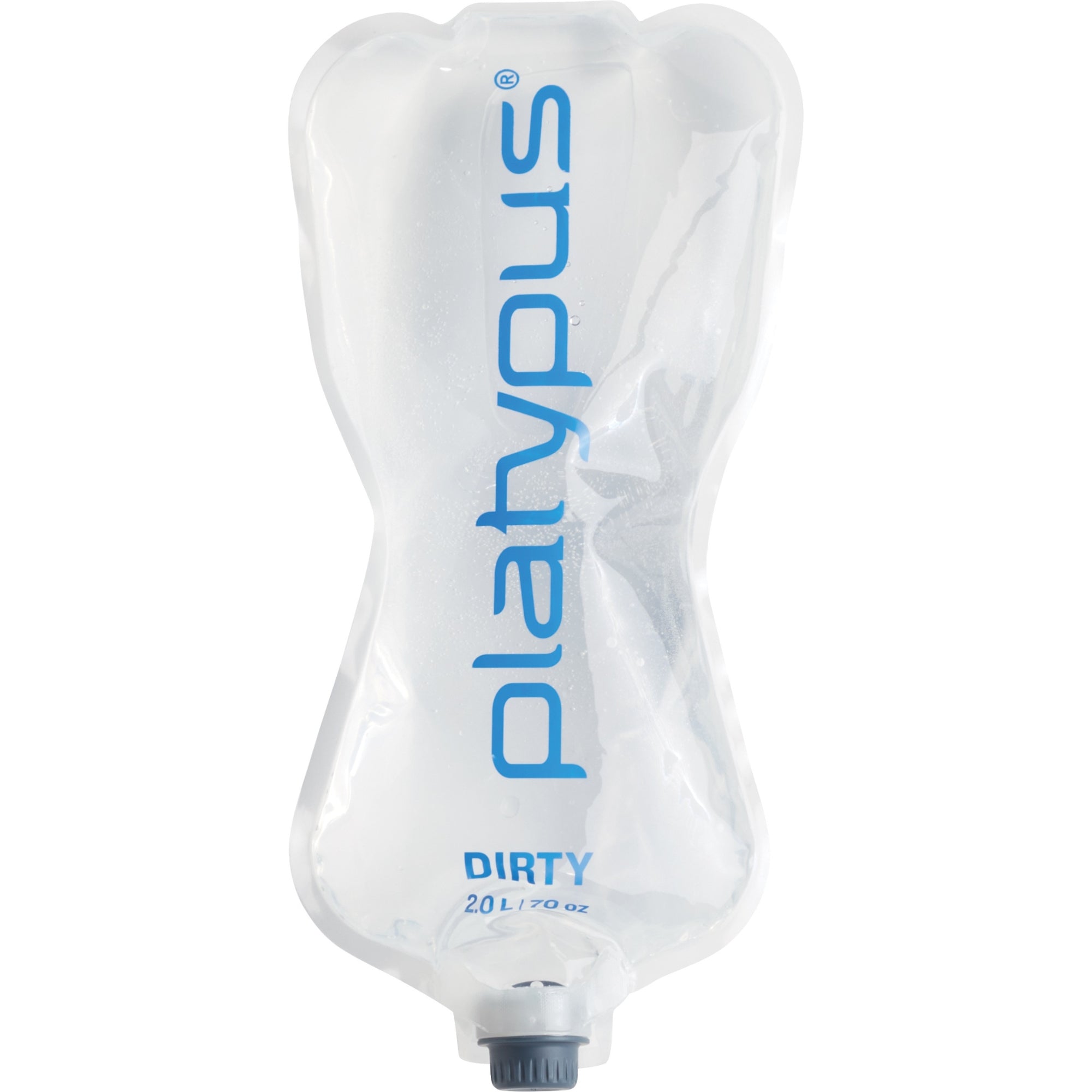

  • Premium 2L Reservoir: Proprietary tri-layer film dirty reservoir has an easy-fill wide-mouth opening, a fill handle, and is super durable and packable—plus it’s guaranteed plastic-taste-free.
  • Combine & Customize: I/O threads, the ConnectCap™ and quick connector-fitted short hose let you dial in your custom leak-free system using the clean and dirty vessels you prefer, like smartwater® bottles, Platy bottles, and quick disconnect-fitted hydration reservoirs.
  • Ultralight: At just 5.7 oz (161 g), it keeps things ultralight with the added versatility of higher water capacity.
  • Fast Flowing: Hollow fibers filter 3 liters per minute with squeeze pressure and 1.75 liters per minute in a gravity setup.
  • Easy Cleaning: Easily shake-to-clean the system or backflush it to keep the water flowing fast throughout your trip.
  • Safe & Effective: Each filter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa.*
  • Integrity Test: Unlike other squeeze filters, easily determine if your filter has been compromised and is unsafe to use in the event of a fall or freezing.
  • Compatible Vessels: QuickDraw reservoirs, smartwater bottles and other narrow-mouth 28mm bottles, Platy 2.0L, Platy SoftBottle™, Platy Water Tank, quick disconnect-fitted hydration reservoirs like the Big Zip™ EVO.

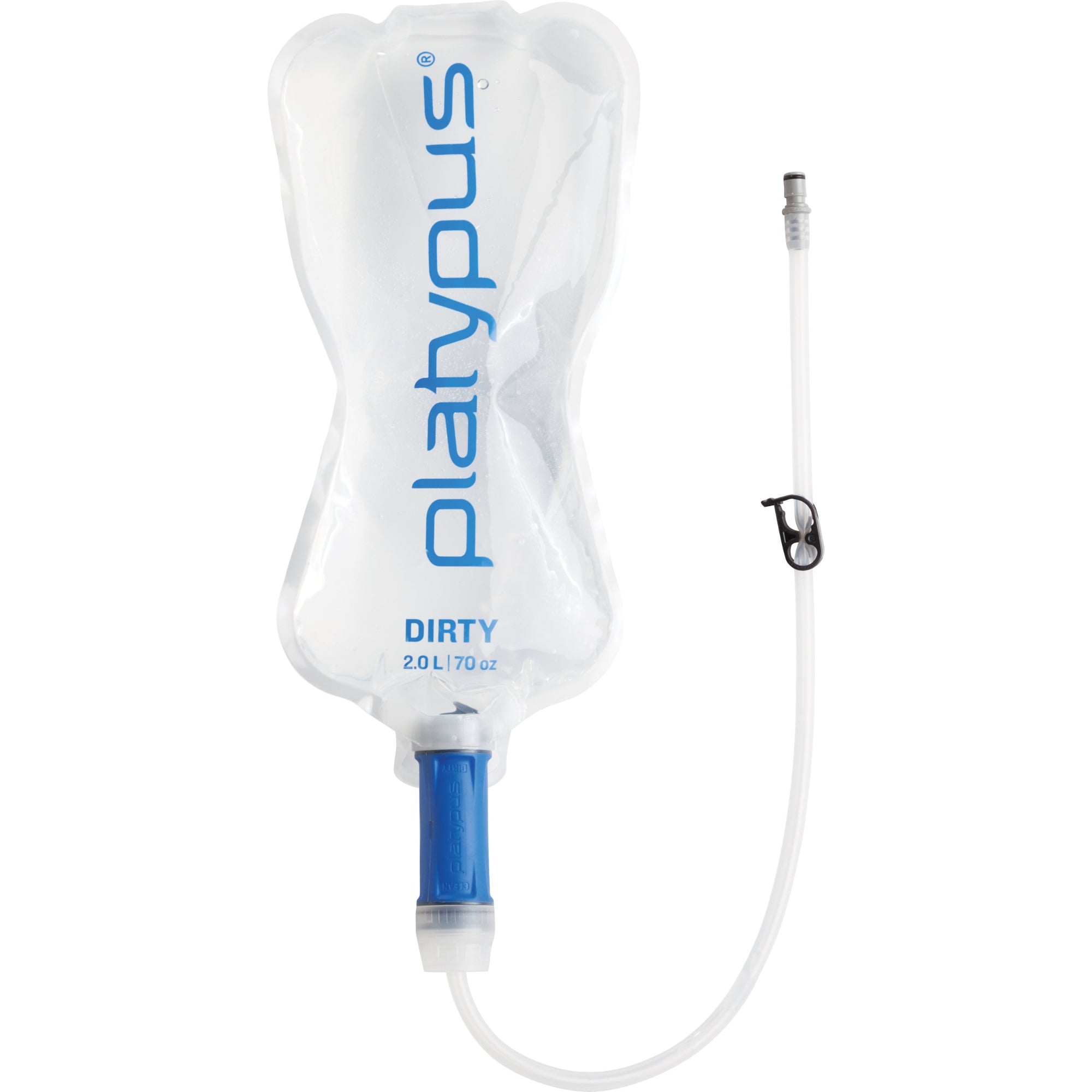

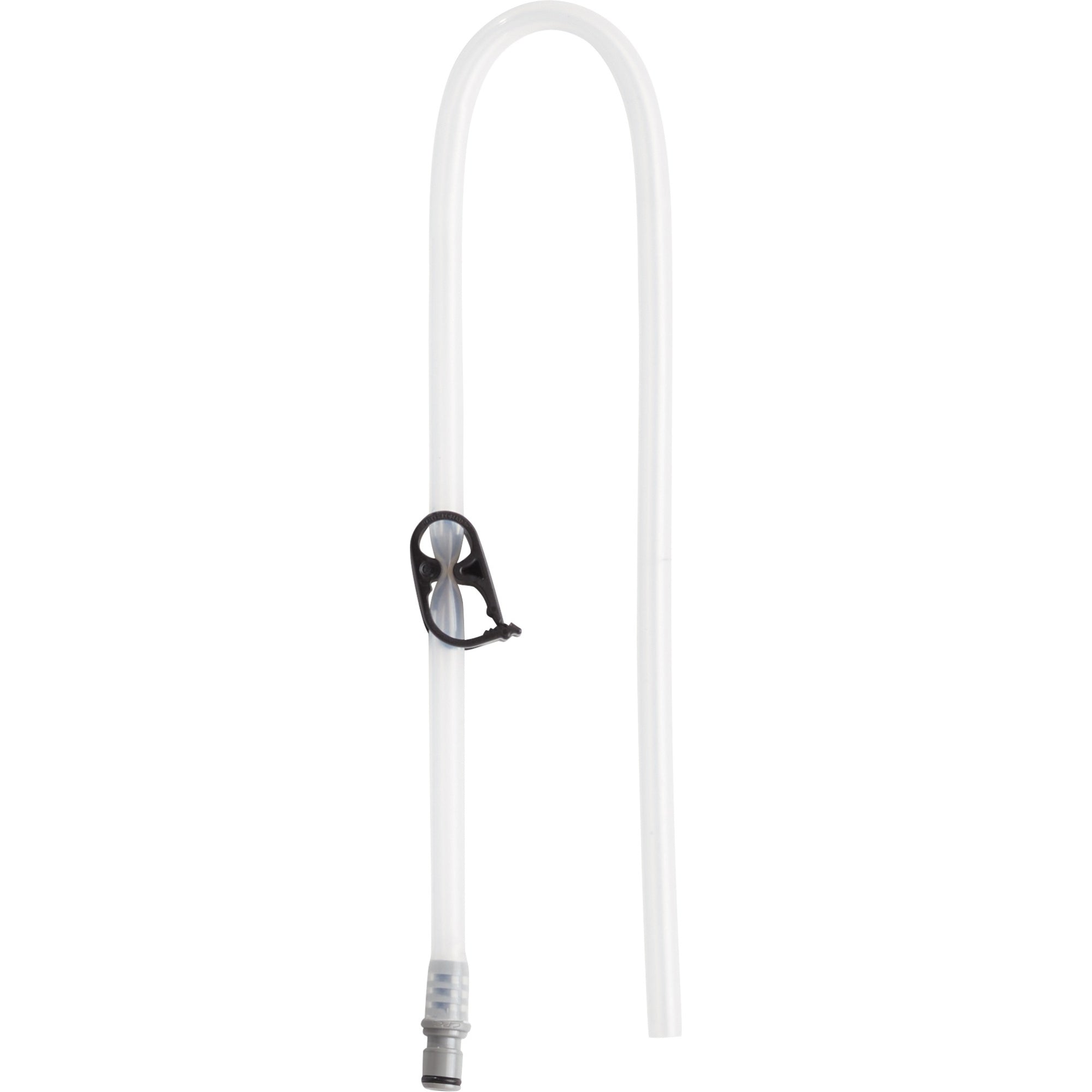

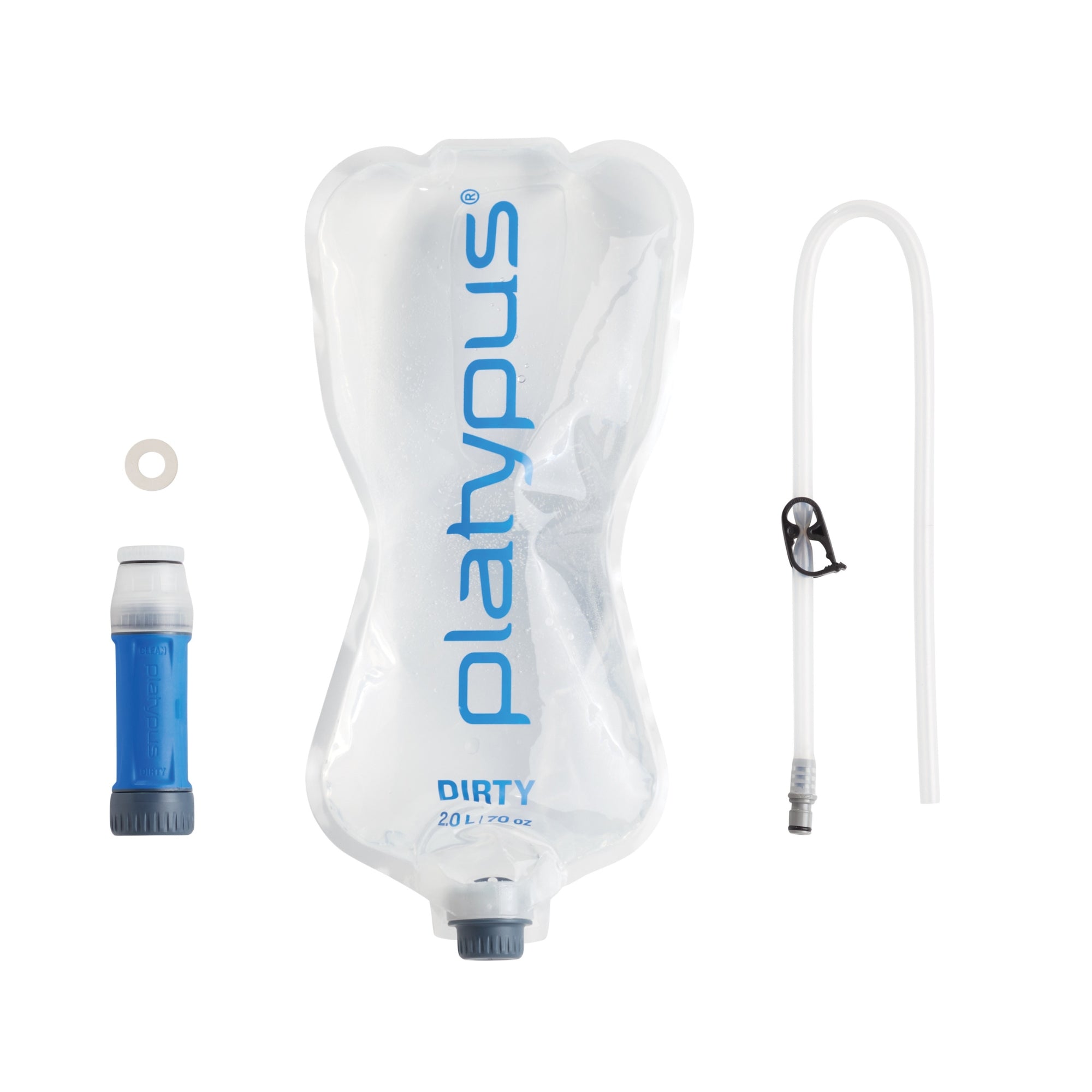

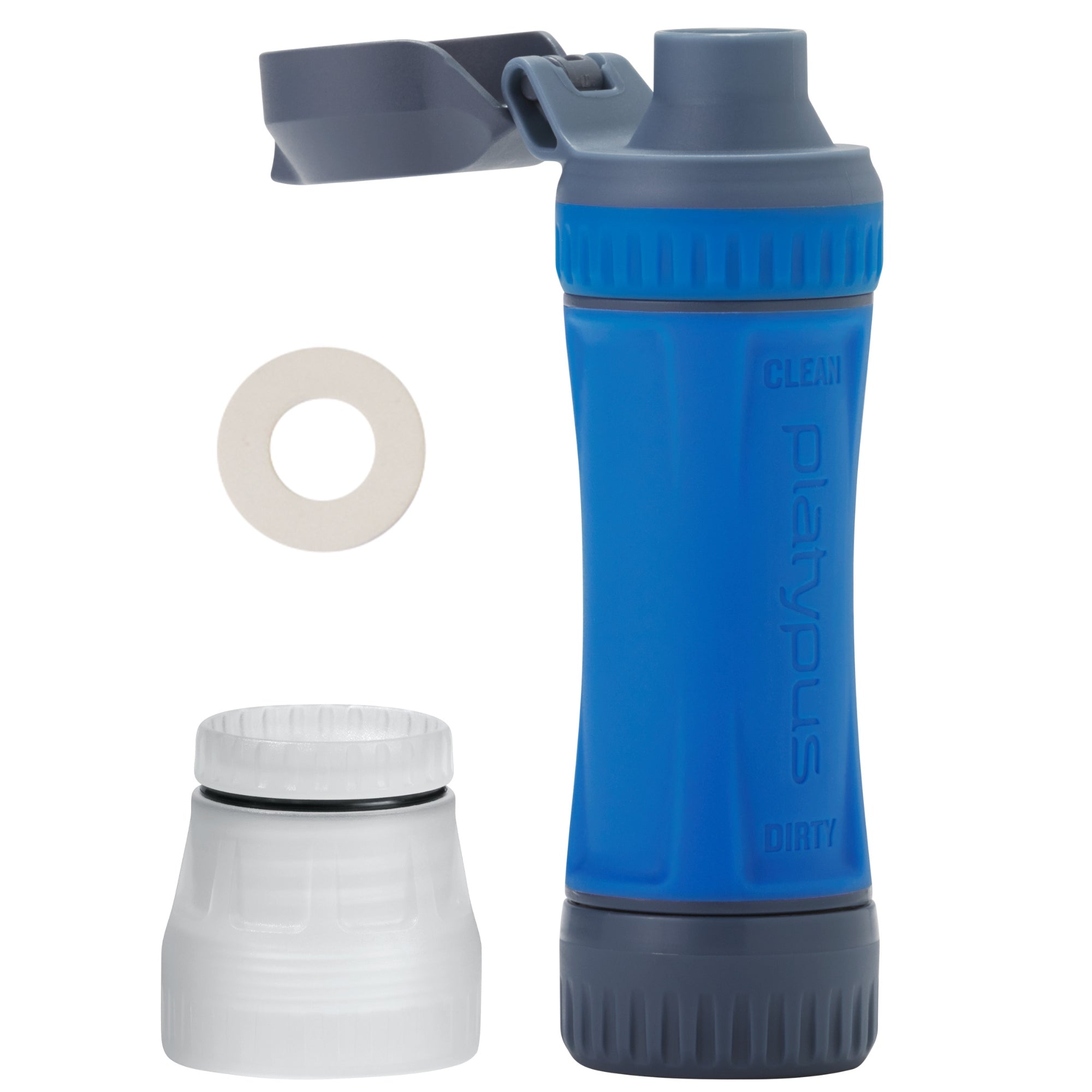

  • Comes with QuickDraw Filter, 2L QuickDraw dirty reservoir with cap, dirty-side cap, ConnectCap with cover, backflush washer, short hose with quick connector, shutoff clamp.

    *Includes Giardia, Cryptosporidium, E. coli, Salmonella and Cholera.


  • Size: 2L
  • Pack Dimensions: 19 x 8 x 7 cm
  • Filter Dimensions: 12.7cm x 5cm x 5cm
  • Effective against bacteria: Yes
  • Effective against particulate: Yes
  • Effective against protozoa: Yes
  • Effective against chemicals/toxins: No
  • Effective against viruses: No

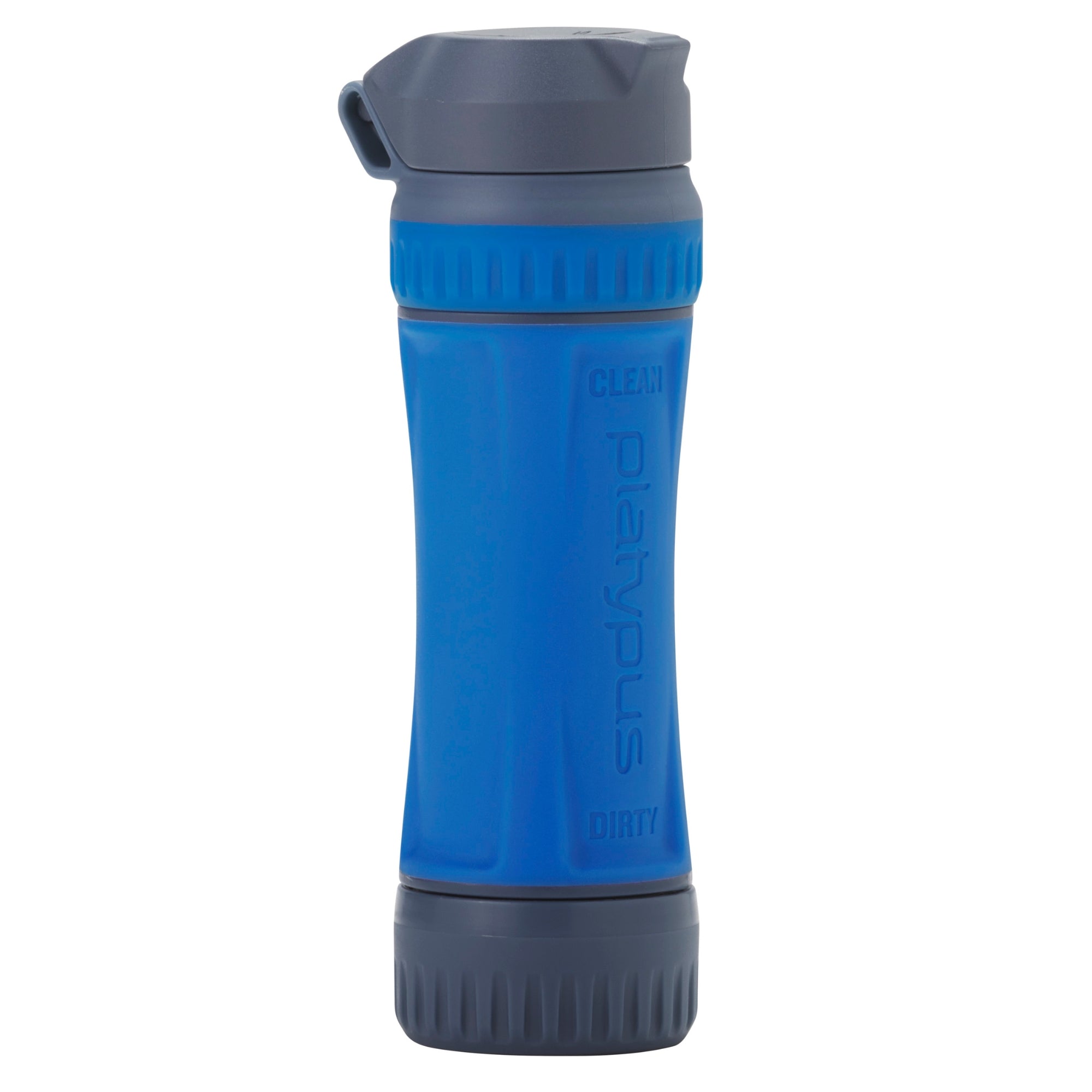

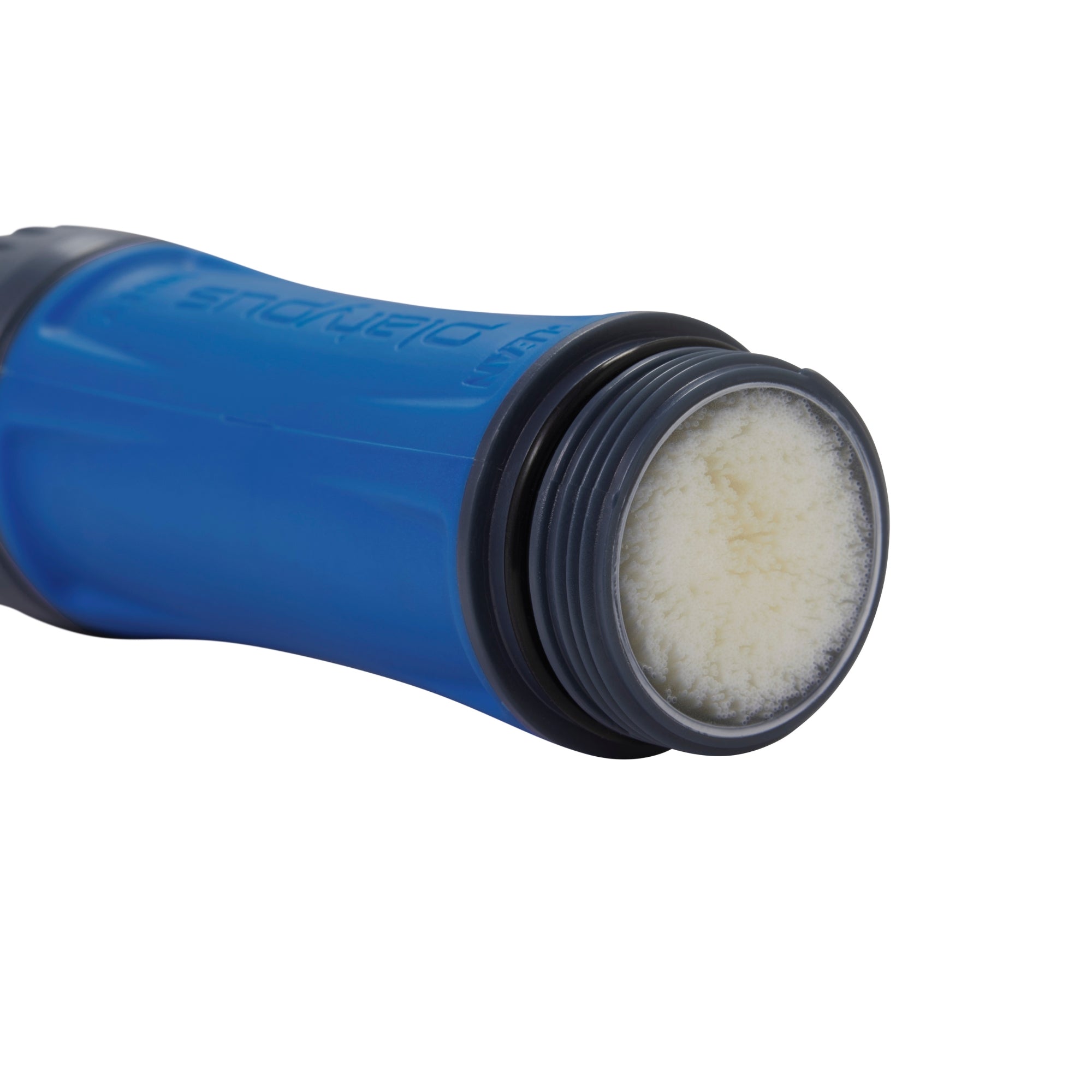

  • Filter media: Hollow Fiber
  • Filter Pore Size: 0.2 microns
  • Flow: 3 litres per minute
  • Cartridge Life: 1000 litres
  • Field cleanable: Yes
  • Water Bottle Adapter: Yes
  • Materials: Hollow Fiber, Plastic
  • What's included:
  • Weight: 80g
  • Made in U.S.A. of U.S. and Imported Materials
